Complete Formwork Systems
Leading Manufacturers, Exporters and Wholesaler of Monolithic Formwork Solution, Slab Formwork Service and Wall & Column Formwork Service from Faridabad.

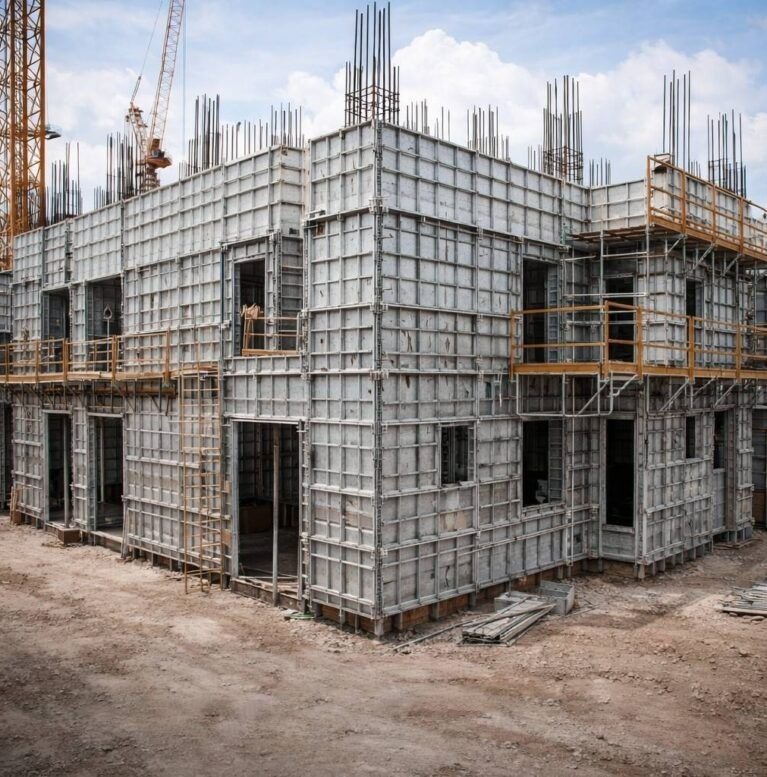

Our Monolithic Formwork Solution is a complete, precision-engineered system designed for fast, accurate, and repeatable casting of walls, slabs, beams, staircases, and other structural elements in a single pour.
The system includes standard, non-standard, and special panels along with a full range of accessories, supports, connectors, and tools.
Each component is supplied with a unique identification code defining its type, dimensions, and location as per detailed modulation drawings prepared by our design team. Along with the material supply, we provide site-specific layout and sequence drawings that guide the first casting, assembly order, and correct positioning.
Once assembled, the system forms a customized mould matching the exact structural design. All concrete-contact surfaces are oiled before casting to ensure smooth finish and easy de-shuttering. After successful casting, the formwork is dismantled and reused at the next level, ensuring speed, consistency, and cost efficiency.
Formwork Panels & Elements
-
Standard Panels for Deck & Wall
-
Non-Standard Panels for Deck, Wall & Beam Sides
-
Special Panels for Staircases & Custom Areas
-
Corner Elements: Internal Corners, ECA, Soffit Lengths & Corners
-
Starter Elements: Rockers, Kickers
-
Soffits: Beam, Staircase & Chajja Soffits
-
Closure Panels: Wall Closure, Chajja Edges, A.C. Ledges
-
Covers: Staircase Covers, Plate Covers (PC), Chajja Covers
-
Formwork for Special Locations: Kitchen Slab, Parapet, etc.
-
Components for Sunk-in Slab
-
Joiners: BKS
-
Profiles for Groove Making: Plumbing Grooves, Drip Moulds, Elevation Features
Support & Alignment System
-
Prop Heads: DPH, BPH
-
Adjustable Telescopic Props
-
Twin Tube Walers
-
Working Platform Brackets
-
Horizontal Alignment Tubes
-
Aligners (Liner Jack)
-
Vertical Soldiers
Connecting & Tying Items
-
Stub Pins & Wedges
-
Long Pins
-
Wall Ties, Tie Rods
-
Turnbuckles with Wire Ropes
-
Waler Clamps (German Clamp)
Fasteners & Consumables
-
Rocker Bolts, Kicker Bolts
-
Anchor Nuts
-
Wall Tie Sleeves
-
Corrugated Sheets
-
Polythene Rolls
Tools & Tackles
-
Panel Puller
-
Tie Puller
-
Hole Bari
Outcome:
A high-precision, reusable, and efficient formwork system that ensures faster construction cycles, superior surface finish, dimensional accuracy, and reduced material wastage across multi-storey structures.
| Type | Aluminium Slab Formwork System |
| Material | Aluminium |
| Application | Creating Precise And Durable Moulds For Casting Concrete Slabs |
| Color | Silver |
| Packaging | Modular Design For Easy Assembly And Repeated Reuse |
| Components | Rectangular Panels,Standard Deck Panels,Non-Standard Deck Panels,Special Panels,Custom-Designed Panels As Per Slab Geometry,Corner Items,Soffit Lengths,Soffit Corners,Beam Integrated System,Mid Beams,End Beams,Beam Sides & Beam Soffits (Integrated With Sl |
Aluminium Slab Formwork is used to create precise and durable moulds for casting concrete slabs. At MDFS, we specialize in advanced aluminium slab formwork systems engineered for speed, accuracy, and superior surface finish. Our solutions are meticulously designed to ensure excellent load-bearing performance, structural integrity, and rapid construction cycles.
We provide complete slab formwork solutions integrated with beam formwork, suitable for a wide range of applications—from residential buildings to large-span commercial and industrial structures. The modular design allows easy assembly, fast de-shuttering, and repeated reuse across multiple floors, ensuring consistent quality and cost efficiency.
Panels & Slab Components-
Rectangular Panels: Standard Deck Panels, Non-Standard Deck Panels
-
Special Panels: Custom-Designed Panels as per Slab Geometry
-
Corner Items: Soffit Lengths, Soffit Corners
-
Mid Beams, End Beams
-
Beam Sides & Beam Soffits (Integrated with Slab Formwork)
-
Beam Bars as Locking Arrangements
-
Prop Heads: DPH, BPH (Suitable for 2-Level Shoring)
-
Adjustable Telescopic Props for 2 Levels
-
CP (Channel Prop) at Selected Load-Bearing Areas
-
Sunk Area System: Panels with Steel Frames
-
Pins & Wedges
-
Long Pins
Outcome:
A high-performance aluminium slab formwork system delivering faster slab cycles, precise dimensional control, excellent concrete finish, and seamless integration with beam structures for efficient and reliable construction.
| Color | Metallic |
| Material | Aluminium |
| Type | Aluminium Formwork System |
| SuitableFor | Standalone Columns, Shear Walls, Lift Walls, Retaining Walls, Boundary Walls |
| SupportsDesigns | Rectangular, Curved Column Designs |
| SpecialPanels | Curved Panels For Circular & Radius Columns |
| Components | Standard Wall Panels, Non-Standard Wall Panels,Curved Panels For Circular & Radius Columns,Internal Corners, ECA,For Multi-Level Casting,Optional For Multi-Level Casting,Optional For Vertical Plumb Control,Included,For Wall Thickness Up To 450 Mm,For Wall |
| Outcome | Robust, Reusable, Adaptable Formwork System For Accurate Geometry, Faster Construction Cycles, Excellent Surface Finish, Reliable Performance |
We design and supply high-precision Aluminium Wall & Column Formwork Systems suitable for both standalone columns and various wall structures such as shear walls, lift walls, retaining walls, and boundary walls.
The system is engineered for speed, dimensional accuracy, and superior concrete finish, making it ideal for multi-level and repetitive construction.
Our formwork solutions support rectangular as well as curved column designs, with special panels fabricated as per the required radius. The system ensures proper alignment, plumb control, and structural stability during casting, while enabling fast de-shuttering and reuse across multiple floors.
Panels & Formwork Components-
Rectangular Panels: Standard Wall Panels, Non-Standard Wall Panels
-
Special Panels: Curved Panels for Circular & Radius Columns
-
Corner Items: Internal Corners, ECA
-
Kickers for Multi-Level Casting
-
Platform Brackets (Optional) for Multi-Level Casting
-
Push Pull Props / Plumbing Struts (Optional) for Vertical Plumb Control
-
Pins & Wedges
-
Wall Ties for Wall Thickness up to 450 mm
-
Tie Rods with Anchor Nuts for Wall Thickness beyond 450 mm
-
Horizontal Alignment Tubes with Waler Clamps
-
Twin Tube Walers (where Tie Rods are used)
-
Liner Jacks as per Site Requirement
Outcome:
A robust, reusable, and adaptable wall & column formwork system that delivers accurate geometry, faster construction cycles, excellent surface finish, and reliable performance for residential, commercial, and infrastructure projects.
